DIY Screw-On Speaker Connectors
Versatile and easy-to-assemble DIY gold plated connectors. They offer high quality contact over long periods of intensive use and are very effective in keeping oxidation away.
- 24 carat gold plated, screw-on, solderless connectors

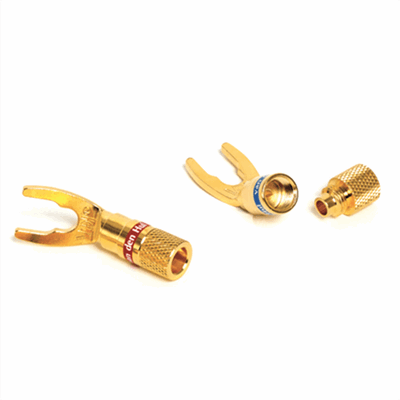

- Available in packs of four angled spades (fork) or banana plugs with red or blue rings for polarity identification
- Only suitable for multi-strand loudspeaker cable and wire types. Minimum values: AWG 12 (Ø2 mm), for the bare conductor, and Ø 6.5 mm for jacket diameter
- The banana and the angled fork spade screw-on terminals are WBT binding post fitting. Both offer excellent mating properties and minimal contact resistance.
- The high pressure clamping ensures low loss electrical connection and maximum signal transfer
- Banana terminal (standard Ø4 mm pin)
- Angled fork spade terminal fits studs from Ø 6.0 mm to Ø 8.5 mm.
- Easy assembly instructions (4 steps):
- Strip off 14mm of the multi-strand cable/wire jacket
- Insert the stripped end through the screw-on collar
- Fan out the strands and evenly fold them encircling the collar
- Insert the banana pin/spade blade and screw-on to the collar
- These connectors fit the following cables and wires:
|
The CLEARTRACK |
CS - 12 HF |
|
The CLEARWATER |
CS - 14 HYBRID |
|
D – 352 HYBRID |
CS – 14 |
|
The GOLDWATER |
CS – 16 |
|
The INSPIRATION HYBRID |
CS - 122 HYBRID |
|
The SKYLINE HYBRID |
SCS - 16 |
|
The SNOWLINE |
SCS - 18 |
|
The TEATRACK HYBRID |
|
|
The TWIN |
|
|
The WIND Mk II HYBRID |
|
TIP:
Try our special contact fluid The SOLUTION on the strands before mounting the banana pin/spade blade part.
