• 24 carat gold plated, screw-on, solderless connectors

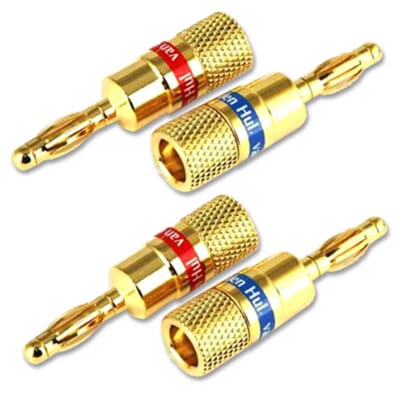

• Available in packs of four angled spades (fork) or banana plugs with red or blue rings for polarity identification

• Only suitable for multi-strand loudspeaker cable and wire types. Minimum values: AWG 12 (Ø2 mm), for the bare conductor, and Ø 6.5 mm for jacket diameter

• The banana and the angled fork spade screw-on terminals are WBT binding post fitting. Both offer excellent mating properties and minimal contact resistance.

• The high pressure clamping ensures low loss electrical connection and maximum signal transfer

• Banana terminal (standard Ø4 mm pin)

• Angled fork spade terminal fits studs from Ø 6.0 mm to Ø 8.5 mm.

• Easy assembly instructions (4 steps):

1. Strip off 14mm of the multi-strand cable/wire jacket
2. Insert the stripped end through the screw-on collar
3. Fan out the strands and evenly fold them encircling the collar
4. Insert the banana pin/spade blade and screw-on to the collar

• These connectors fit the following cables and wires:

TIP:

Try our special contact fluid The SOLUTION on the strands before mounting the banana pin/spade blade part.
