General Description |

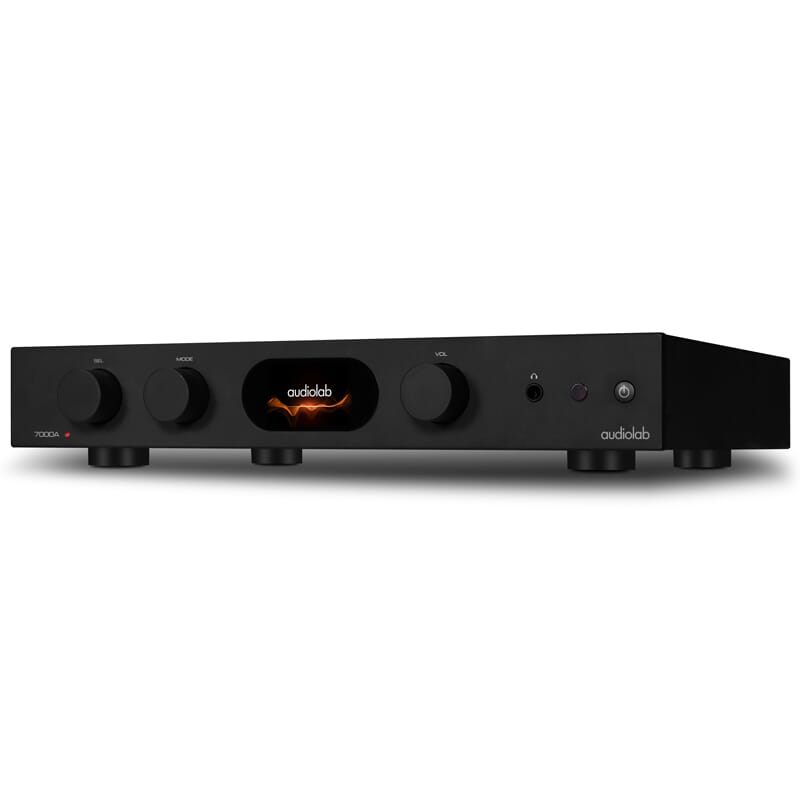

Integrated Amplifier |

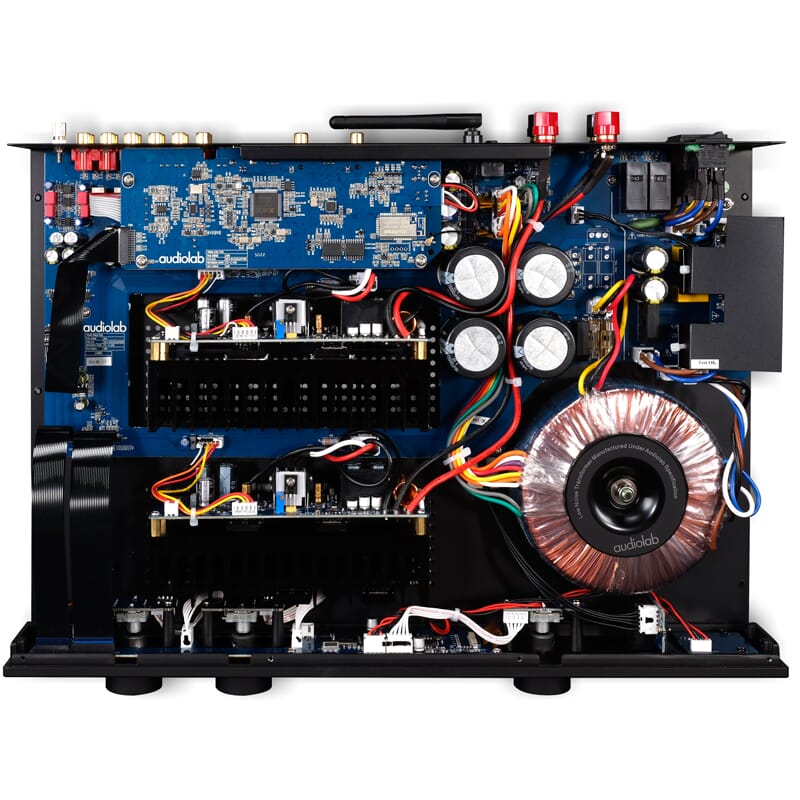

Design Philosophy and Core Technology |
- 2 x 70W (8 ohms) / 2 x 110W (4 ohms) Class AB |
|
- ES9038Q2M 32-bit DAC |
|
- 2.8" (480x640mm) Full View IPS LCD |
|
- Built in Certified Hardware MQA Full Decoder (PC USB, Coax / Optical) |
|
- Bluetooth 5.0 (aptX / aptX LL) Support |
|
- Low Noise Moving Magnet Phono Stage |
|
- Dedicated Current-Feedback Headphone amp |
|
- Integrated / PRE-POWER / PRE only Modes |
|
- VU Digital / VU Analogue Meter |
|
- USB Upgrade Support |
Inputs |
3 x Analogue, 1 x Phono (MM), 1 x Power Amplifier, |
|
2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x HDMI ARC, |
|
1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX LL), 1 x 12V Trigger |
Outputs |
1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger |
Sampling Frequency |
Optical / Coaxial: 44.1kHz - 192kHz; |
|
PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512 |
Preamplifier Section |
|
Gain |
+6dB (Line); +55dB (Phono MM) |
Input Sensitivity |
820mV (Line, Volume = 0dB); 3.1mV (Phone MM, Volume = 0dB) |
Input Impedance |
10K (Line); 47K // 100pF (Phono MM) |
Total Harmonic Distortion (THD) |
< 0.0005% (1kHz @ 2V, Volume = 0dB) |
Frequency Response |
20Hz-20kHz (+/-0.1dB) |
Output Voltage |
2.3V max. (Volume = 0dB) |
Output Impedance |
100 ohms |
Signal-to-Noise Ratio |
> 110dB (Line, A-weighted); > 76dB (Phono MM, A-weighted |
|
|
DAC |
|
D to A Converter |
ES9038Q2M |
Total Harmonic Distortion (THD) |
< 0.0005% (1KHz @ 0dBFS) |
Output Level (0dBFS, 1kHz) |
2.1Vrms |
Max. Sampling Frequency |
Optical, Coaxial: 192kHz; |
|
PC USB: PCM768kHz, DSD512 |
Power Amplifier Section |
|
Gain |
+29dB |
Rated Power Output |
2 x 70W (8 ohms, THD<1%); 2 x 110W (4 ohms, THD<1%) |
Frequency Response |
20Hz-20kHz (+/-0.3dB) |
Total Harmonic Distortion (THD) |
<0.003% (1kHz @ 40W / 8 ohms) |
Input Sensitivity |
720mV |
Signal-to-Noise Ratio (S/N) |
> 110dB (A-weighted) |
Max. Output Current |
9A |
Headphone Amplifier |
|
Total Harmonic Distortion (THD) |
< 0.01% (1kHz, 50mW) |
Output Impedance |
4.7 ohms |
Load Impedance |
20-600 ohms |
General |
|
Standby Power Consumption |
<0.5W |
Net Weight |
8.4kg |
Gross Weight |
10.7kg |
Dimensions (mm) (W x D x H) |
444 x 340 x 78 |
Carton Size (mm) (W x D x H) |
500 x 455 x 140 |
Finish |

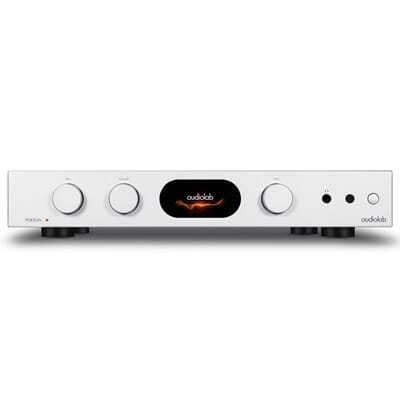

Black / Silver |
Power Requirements |
220-240V ~ 50/ 60Hz; |
(depending on region) |
100-120V ~ 50/ 60Hz |
Standard Accessories |

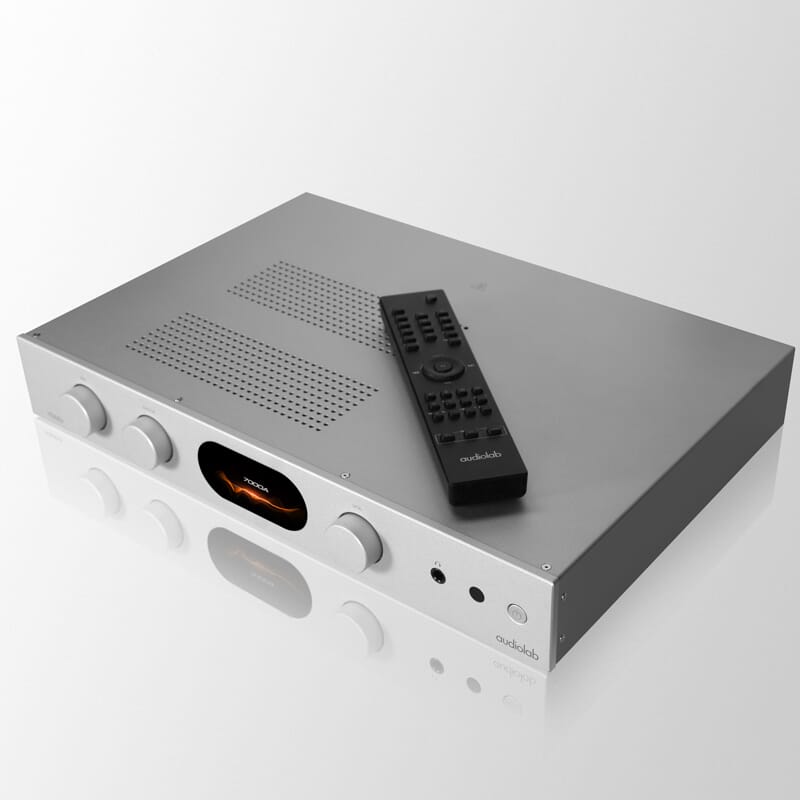

Power Cord, Remote Control, User Manual, Antennas, etc. |
