Luxman M-10X

Luxman M-10X – En kraftforsterker i særklasse som leverer kompromissløs ytelse

Luxman M-10X er en kraftforsterker som tar det beste av Luxmans rike tradisjon og kombinerer det med den nyeste lydteknologien for å levere en lydopplevelse som overgår det meste. Som verdens eldste high-end forsterkerprodusent (100-års jubileum i 2025), har Luxman en arv og ekspertise som få andre kan matche, noe som gjenspeiles i hver eneste detalj av M-10X.

Det spesielle med Luxmans forsterkere er deres evne til å kombinere silkemyk, superoppløst og varm lydgjengivelse med stålkontroll og dynamikk i referanseklasse. M-10X er intet unntak; støynivået og detaljeringen er så eksepsjonelt lavt at den kan brukes med supereffektive høyttalere som Tannoy Westminster eller Klipschorn, samtidig som den beholder den magiske lydkarakteren som ofte kun finnes i rørforsterkere. På den andre siden har M-10X også krefter til å drive tungdrevne høyttalere som mbl 101 E MKII med letthet, takket være sin fenomenale kraftleveranse.

Denne enestående kombinasjonen av egenskaper skyldes Luxmans fanatiske fokus på detaljer i konstruksjonen og deres avsky for snarveier. Et godt eksempel er de gjennomsiktige og gullforgylte kretskortene med avrundede signalbaner. Luxman mener at fargen som brukes i vanlige kretskort påvirker lyden negativt, og derfor etses kretskortene i M-10X med en avtagbar mal som fjernes før kortet belegges med gull for optimal lydkvalitet.

Når det gjelder kraftleveransen, er M-10X virkelig en kraftpakke. Den yter 2 x 150W i 8 Ohm og hele 300W i 4 Ohm (kontinuerlig), men disse tallene er ekstremt konservative. Forsterkeren er i stand til å levere ekstreme 2 x 1200W peak ved 1 Ohm, og den er helt stabil selv under disse ekstreme forholdene. Om man skulle ønske enda mer krefter, kan M-10X benyttes i mono-konfigurasjon, hvor den kontinuerlig yter 600W i 8 Ohm.

Med en vekt på nesten 50 kg, er M-10X en solid enhet som ikke bare ser imponerende ut, men som også leverer imponerende resultater. Håndlaget i Japan, er M-10X et eksempel på eksepsjonelt håndverk, hvor hvert eneste element er nøye utvalgt og satt sammen for å sikre den beste ytelsen.

Designet av M-10X reflekterer Luxmans forpliktelse til både estetikk og funksjon. Det tidløse kabinettet, med sine karakteristiske VU-metre, gir ikke bare en visuell tilfredsstillelse, men fungerer også som et symbol på den høye kvaliteten som ligger under overflaten. Denne forsterkeren er bygget for å vare, med komponenter av høyeste kvalitet som sikrer pålitelig ytelse i mange år fremover.

Luxman M-10X er en kraftforsterker for deg som ikke ønsker å inngå kompromisser. Den leverer en lyd som er både kraftfull og raffinert, og er et ypperlig valg for deg som ønsker det beste innen high-end audio. Enten du lytter til musikk eller ser på film, vil M-10X gi en oppslukende opplevelse som bringer deg nærmere det originale opptaket enn du kanskje trodde var mulig.

Informasjon fra produsent

Amplified feedback engine that brings music to life

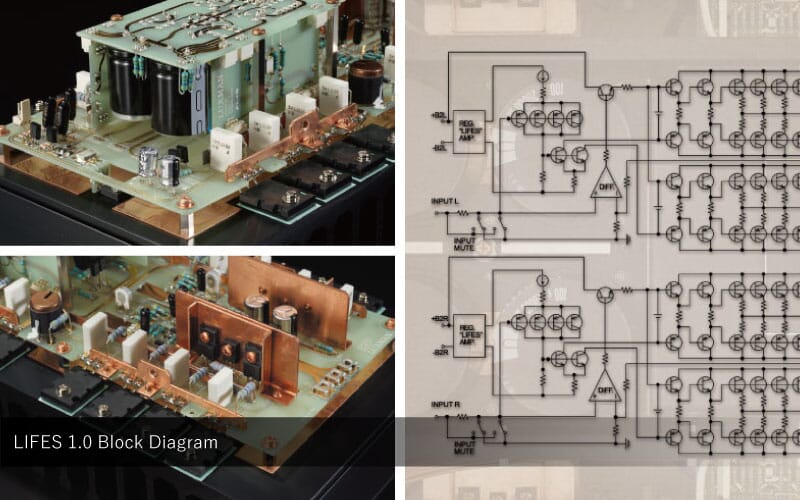

LUXMAN will celebrate our 100th anniversary in 2025 and we are proud to announce the successor to our ODNF* feedback circuitry, which has contributed to the audio quality of our amplifier products since 1999. We have developed a new amplifier feedback circuit, LIFES*, which has acquired realistic, fresh and rich musicality and overwhelming audio performance. LIFES is based on the technical concept of our renowned ODNF circuit and realizes excellent, dynamic characteristics without feeding back any of the original audio input signal to the main amplifier, achieving a remarkably natural sound quality, almost if it were a non-feedback equipped circuit. The design has been conceived and expanded upon from first principles using simulation technology and painstaking research. By repeatedly auditioning, rigorously scrutinizing and combining specially selected components, we have achieved supreme performance characteristics and a level of quality suitable for use in LUXMAN’s next-generation products. This is the birth of the epoch-making amplification feedback engine LIFES Version 1.0, which plays a key role in the amplifier products that will appear in the future, starting with the M-10X, and breathes new life into music.



Overwhelming power linearity and an instantaneous maximum power output of 1,200W + 1,200W (1Ω)

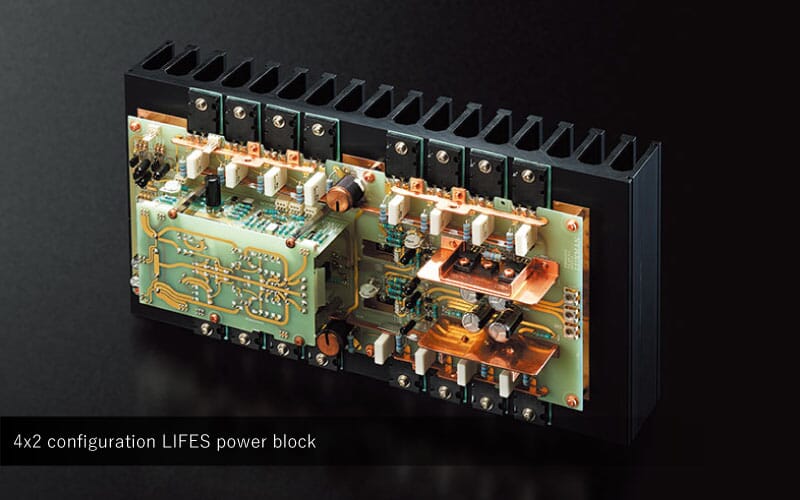

The role of the power amplifier is to faithfully amplify the music signal sent from the control amplifier to the output and drive your speakers accurately while fully drawing out the characteristics of those speakers. With “LIFES” installed in the M-10X and by reconstructing the entire circuit, we succeeded in reducing the number of parallel elements while improving performance and reducing distortion during amplification by half. In addition, the redesigned constant voltage circuitry constitutes a highly stable power supply that fully supports the AC and DC power demands. We have adopted a design that can maintain high performance with more stability. The current amplification stage has a 4x2 output configuration that combines two three-stage Darlington circuits and quadruple paralleled push-pull amplifier circuits that handle various load conditions, and instantaneously develops up to 1,200W+1,200W (1Ω) from a rated output of 150W+150W (8Ω). We have achieved complete power linearity up to 1,200W (1Ω). Along with pure class A operation up to 12W with careful bias current setting, it achieves both overwhelming power and sound quality with a sense of density at a high level.

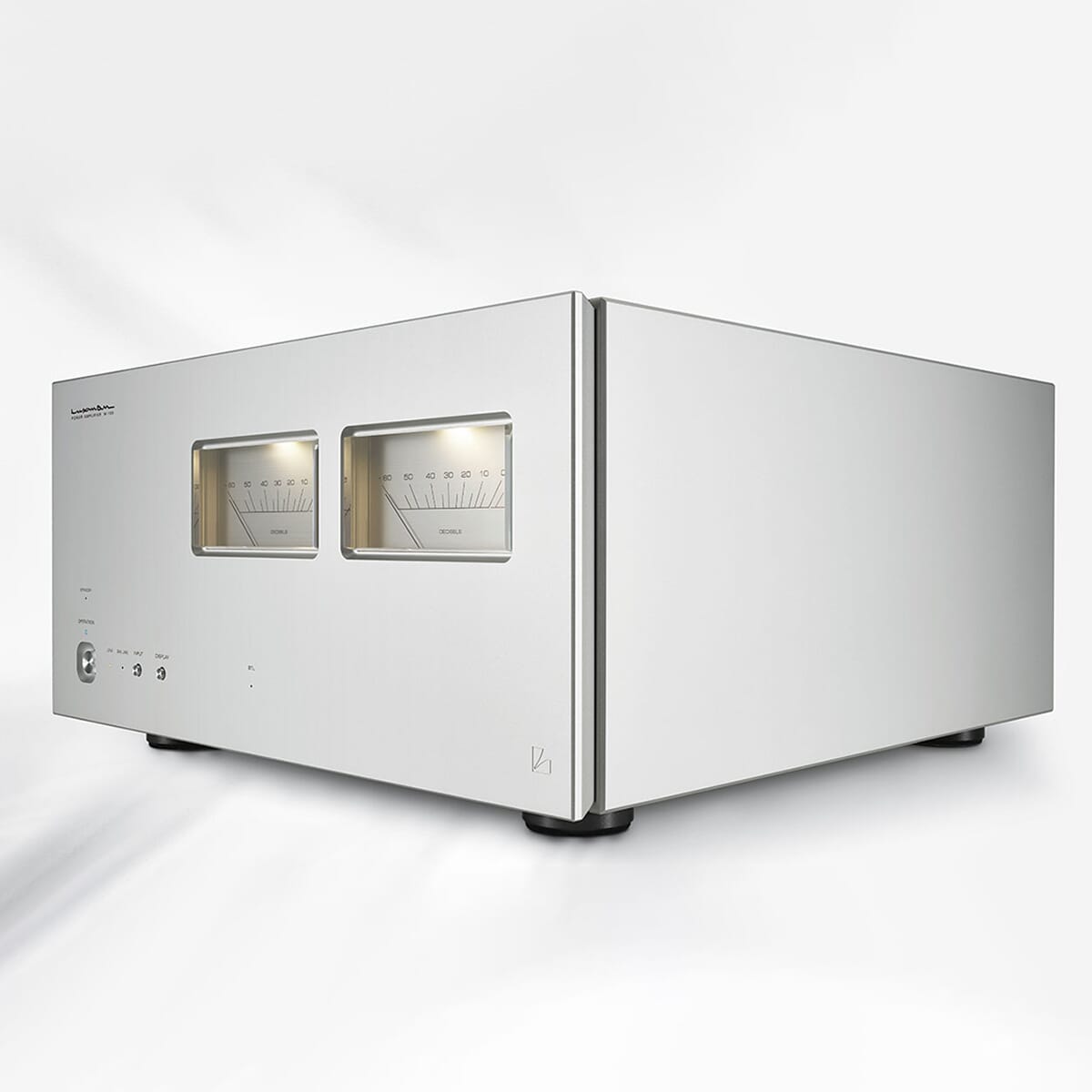

Three-dimensional housing design with more pronounced presence

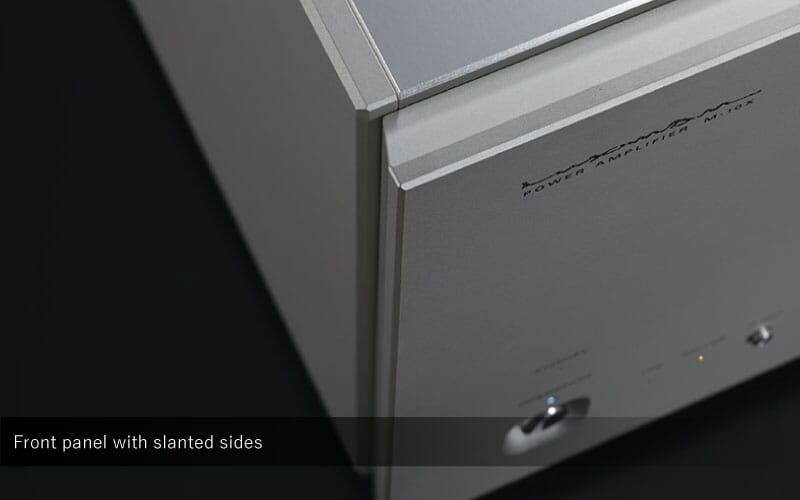

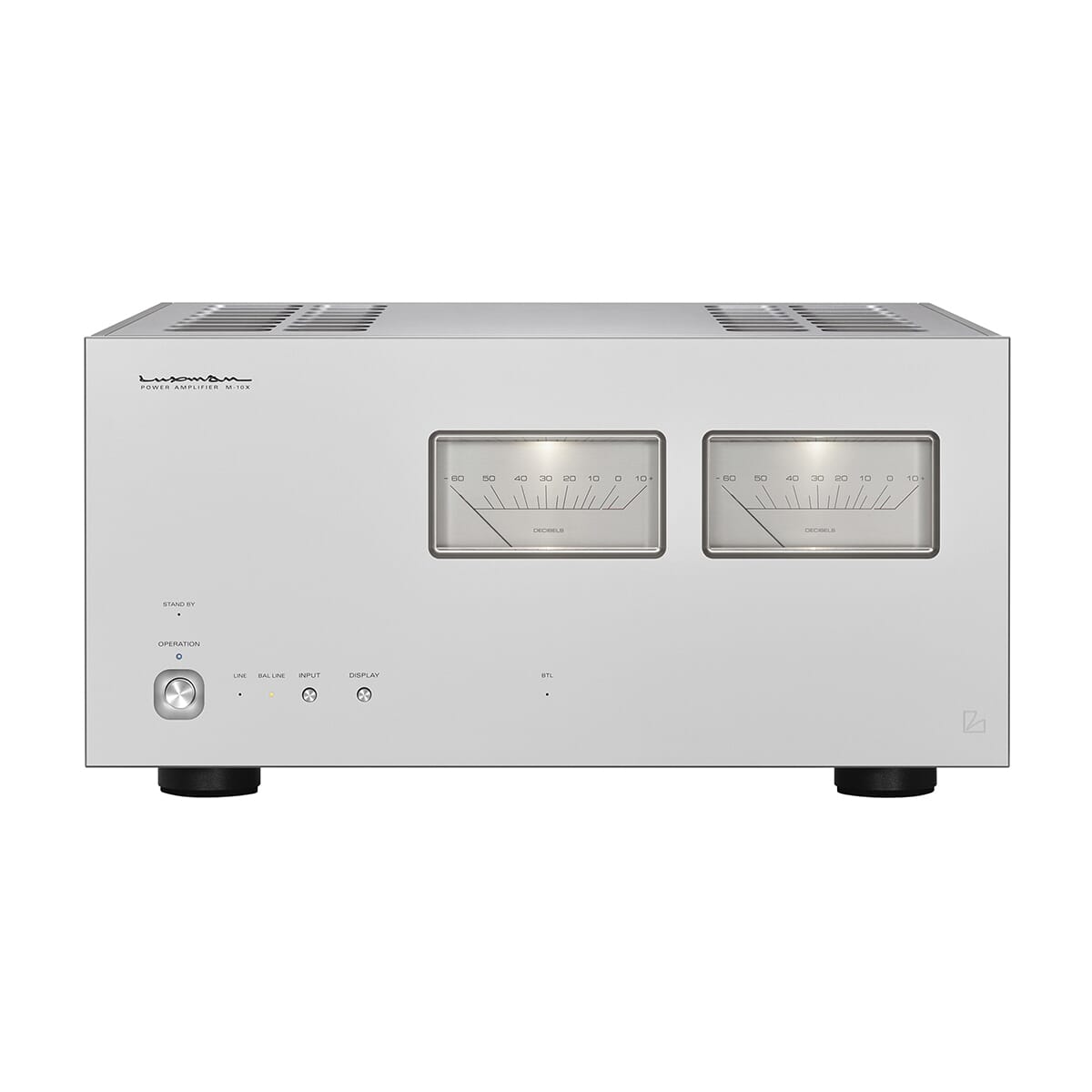

The M-10X has an authentic front face inherited from our M-900u model and expresses bold and delicate slanted edges between the chassis and the front panel.



Analog meters that expresses the dynamics of music

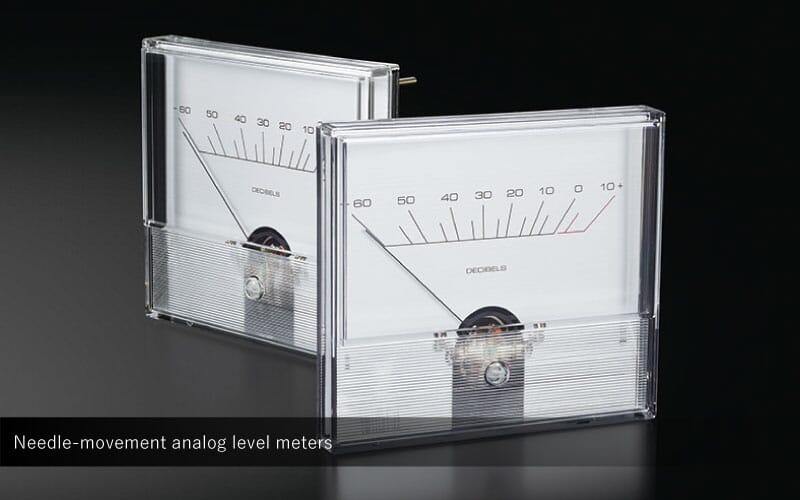

The front panel, which has a simple yet elegant design features prominent needle-movement analog level meters. The LED lighting effectively illuminates both meter scale plates, for improved visibility from listening positions. Meter positioning is optimized so that the operational left channel meter is exactly centered and given priority when used in BTL (monaural) listening mode.

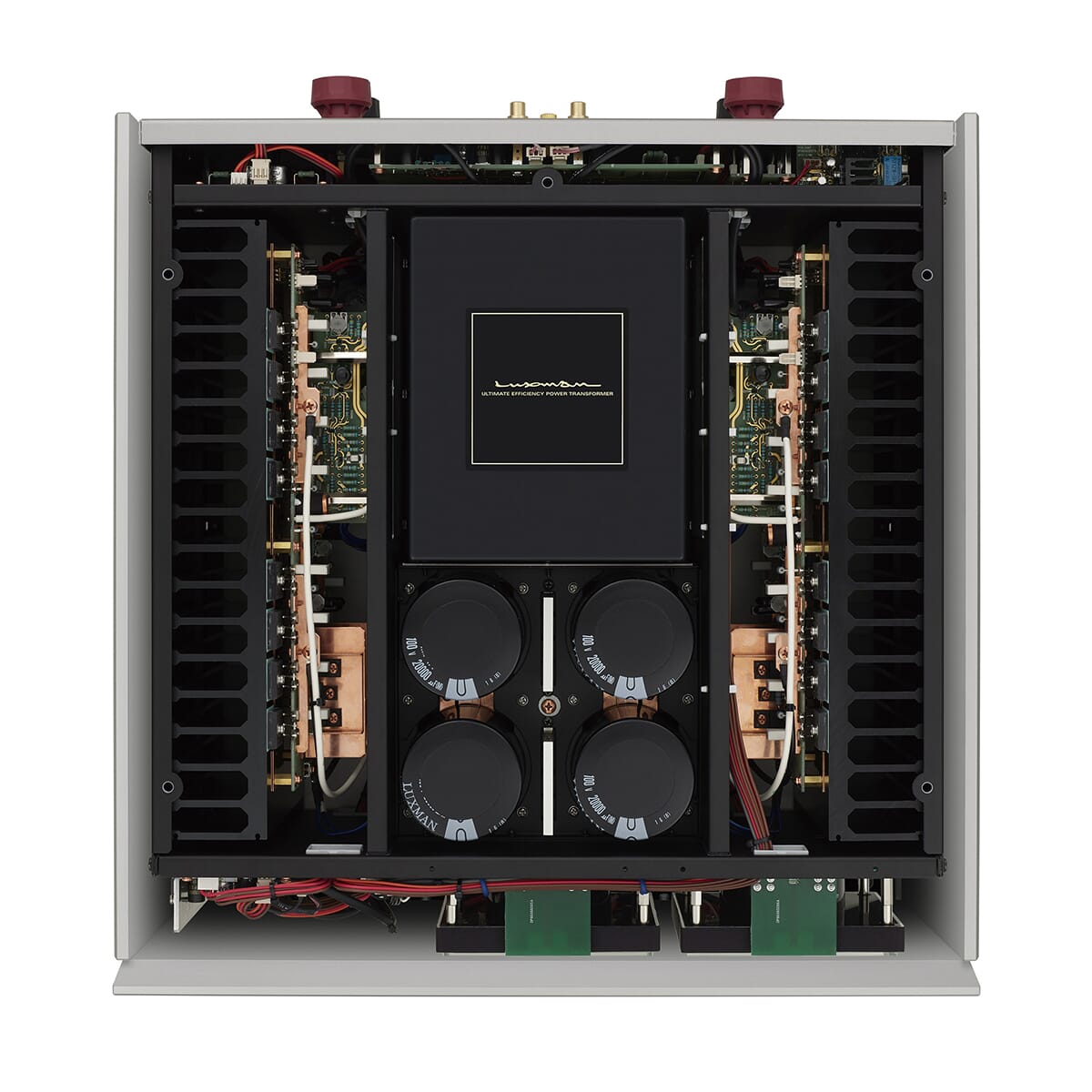

Highly regulated transformer

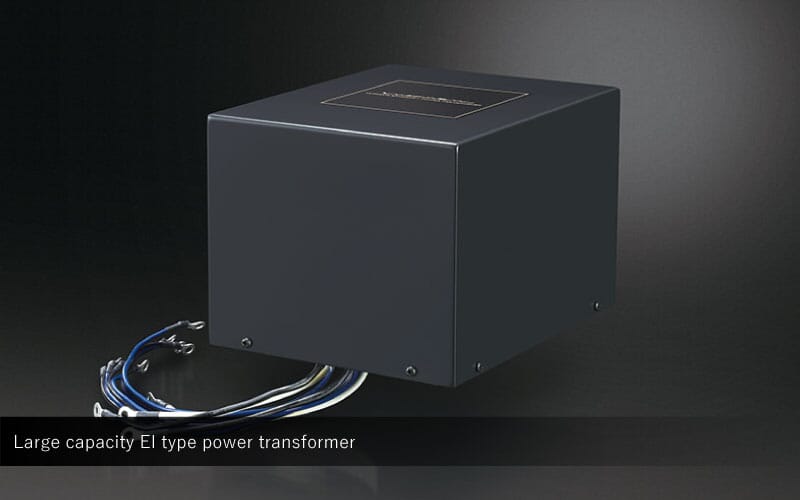

The power supply section supports the overwhelming power and drivability of the M-10X, with flat copper transformer winding wound tightly to conserve space, reducing line capacitance, improving the coupling force and stabilizing the magnetic field. The EI-type highly regulated power transformer has a large capacity of 1,250VA (instantaneous maximum 2,500VA), we have obtained tremendous regulation performance that does not waver with any load fluctuations.



Original custom components

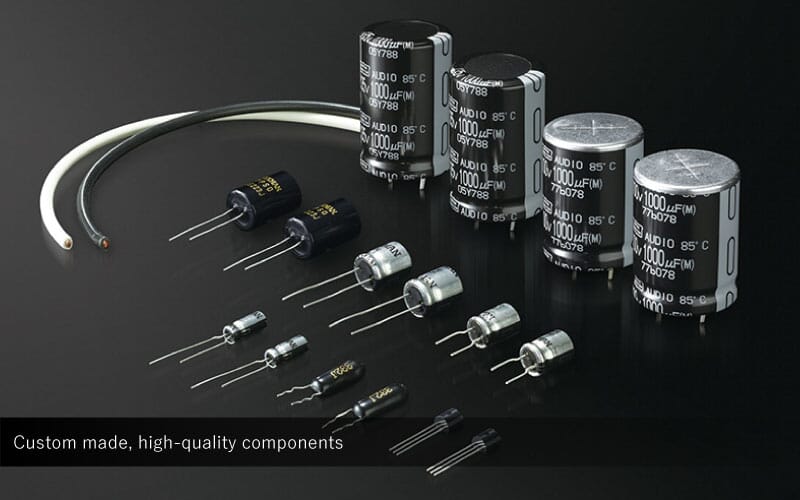

Every component in the circuitry is an important factor that affects the audio performance and musicality of this product. In the M-10X, we thoroughly listened, testing the audio performance of various capacitors and resistors, as well as wiring materials and terminals, and introduced a large number of original custom components that were carefully selected via advanced technology and sensibility.

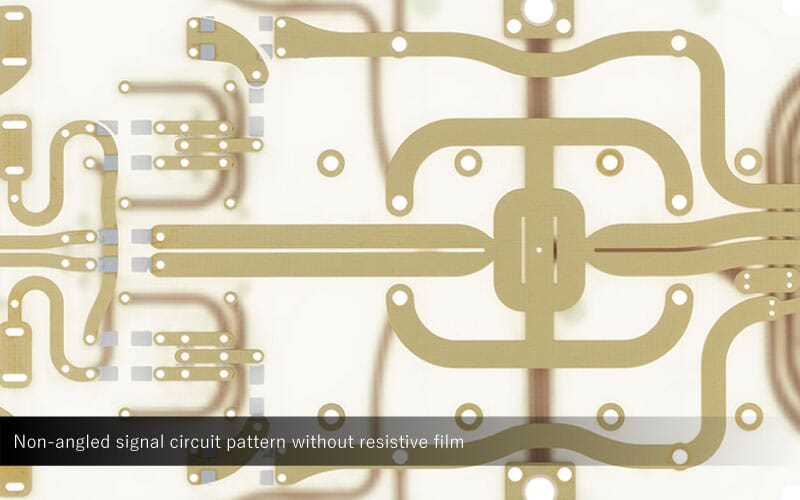

100μm thick non-angled circuit board tracing

All audio circuit boards in the M-10X have 100μm thick, low resistance, gold plated, peel coat tracing that eliminates dielectric effects. In addition, we thoroughly implement a design policy that prioritizes sound quality in every respect, such as non-angled circuit board tracing that keeps the pattern width of the signal line constant and draws a smooth curve to realize smooth and stress-free signal transmission.



Traditional highly stable power supply configuration

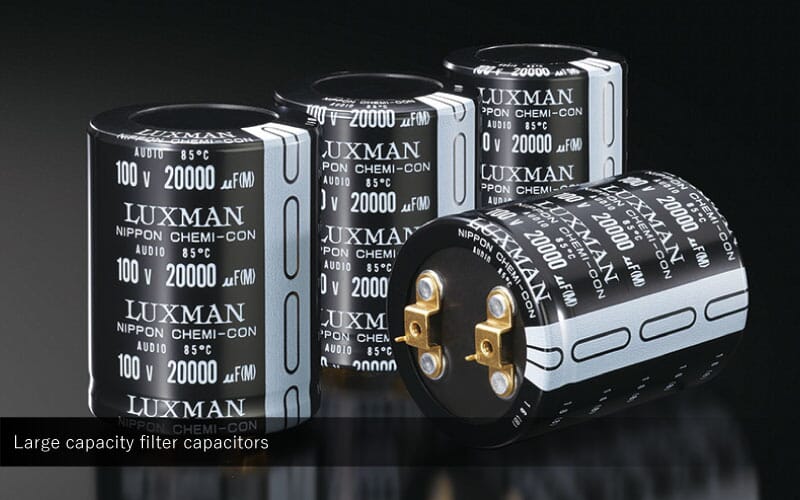

Equipped with newly developed L&R independent 20,000uF x 4 filter capacitors, LUXMAN’s traditional highly stable power supply configuration combines a large capacity filter capacitors and a generously sized power transformer. The M-10X’s powerful load tracking performance is supported by low-impedance signal transmission, low resistance, large-capacity speaker relays with 4 contacts connected in parallel and a direct connection to the bus bar for the speaker terminals.

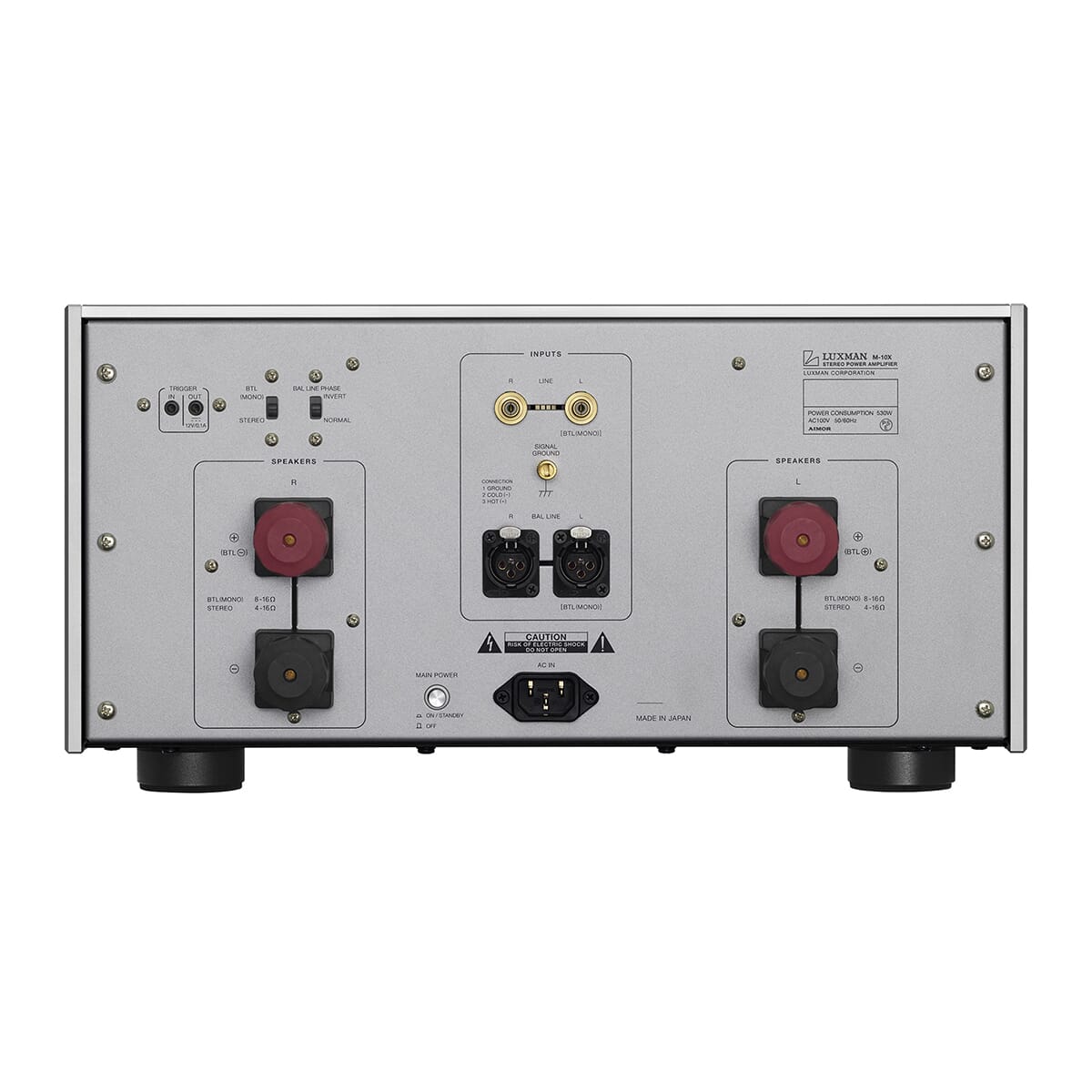

Sound quality-oriented RCA terminals and AC inlet

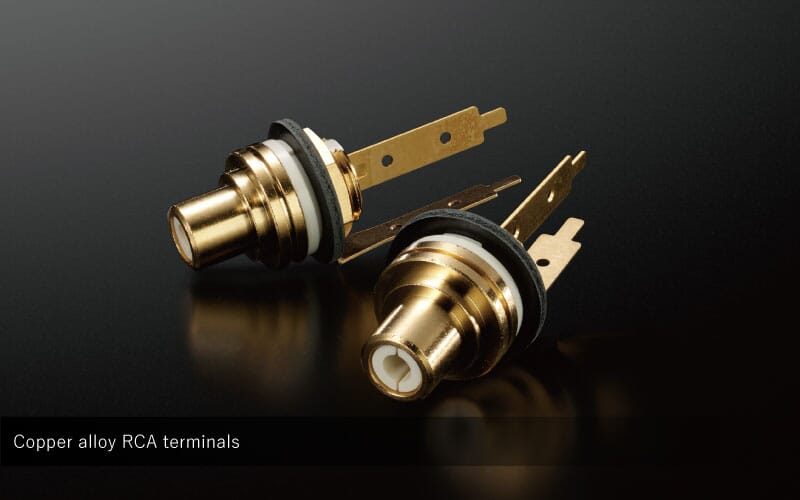

The inputs on the rear panel of the unit are equipped with high-performance RCA terminals made from a copper alloy which has the same conductivity as copper and the hardness of brass. The AC inlet’s structure has been improved to support the weight of heavy cables and, by reversing the mounting orientation from conventional mounting, it suppresses the movement of the power cable and maintains a stable grip.



Anti-vibration and loop-less chassis structure

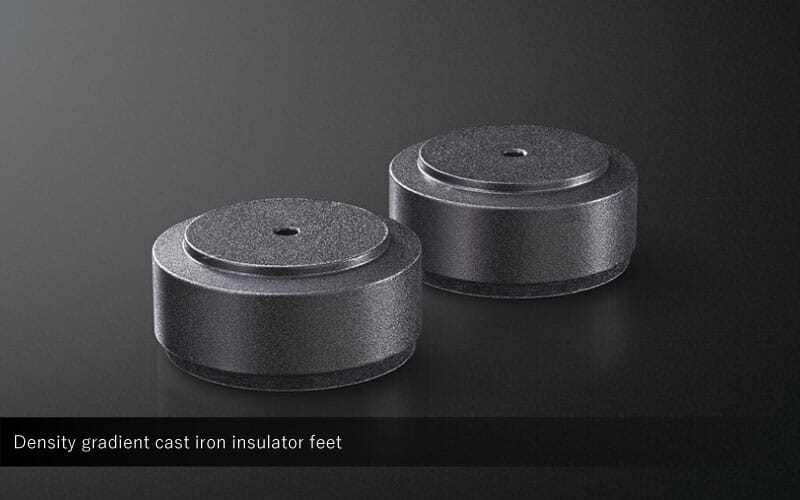

The base, which supports the main body, weighing over 48kg, is equipped with large density gradient cast iron feet that protect delicate music signals from unnecessary vibration by quickly releasing the vibration generated inside, while blocking external vibration. In addition, the metal housing uses a loop-less chassis structure that will not generate a ground loop and isolates the effects of generated magnetic fields and the rise in ground impedance due to chassis current.
