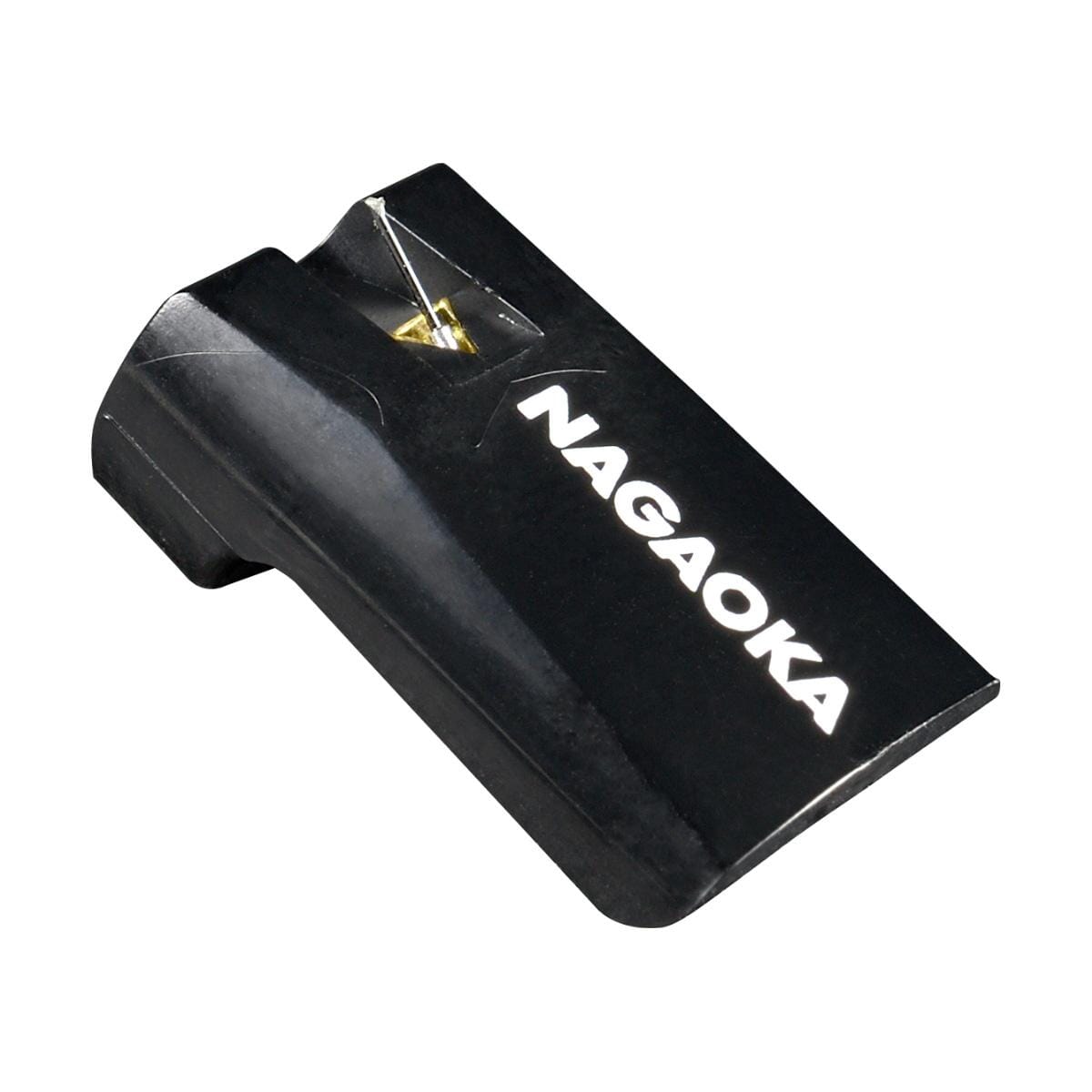

Original erstatningsstylus til Nagaoka JT-80BK
Nagaoka JT-80 Black ble introdusert i 2020 for å feire Nagaoka sitt 80-års-jubileum.
Den er toppmodellen i Jeweltone-serien og pickupen har en fyldig, deilig og litt kraftig klang, noe som har gjort den til en favoritt blant mange MM-entusiaster.
Informasjon fra produsent:
The Nagaoka JT-80BK (Black) cartridge is the top model in the new series. A naked diamond with an elliptical cut is attached to its boron needle carrier.
The sound is extremely round and neutral. In the treble as well as in the bass range it shows a high level of detail. The pickup unfolds its full potential after an approx. 80 hour break-in period.
Tekniske data:
- Output voltage: 3.0mV(5cm/sec)
- Frequency response: 20Hz ~ 20kHz
- Channel separation: 25dB(1kHz)
- Channel balance: <1.5dB
- Recommended Load Impedance: 47kΩ
- Recommended Load Capacitance: 100pF
- Cantilever: Boron
- Stylus tip: 0.4×0.7mil
- Stylus pressure: 1.3 ~ 1.8g
- Cartridge weight: 6.7g
- Dynamic Compliance: 7.3×10-6cm/dyne

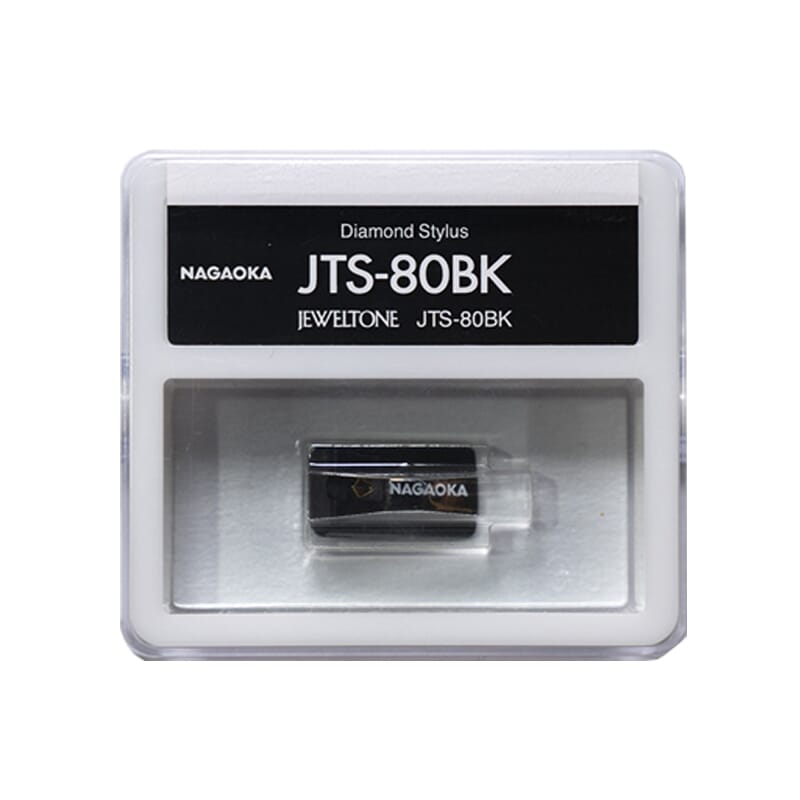

- Replacement Stylus:JTS-80BK
