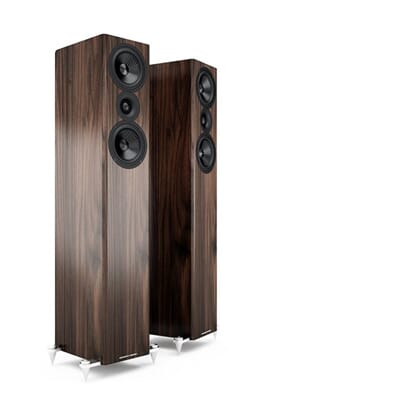

Acoustic Energy AE509

Informasjon fra produsent:

Our flagship 500 Series, comprises two models, the AE500 stand-mount and AE509 floor-stander and boast our newly developed carbon fibre tweeters and mid/bass drivers, designed to match the pistonic power and accuracy of our legendary ceramic aluminium drivers but with improved self-damping for a smoother, more transparent sound.

Our new 500 Series tweeter features a brand new 25mm carbon fibre dome. Carbon fibre is much lighter and better damped than other typical hard dome materials and provides a lightning fast, natural sound which will surprise the listener with its neutrality. The new cast aluminium WDT waveguide on the high frequency driver is positioned close to the mid/bass driver for optimum dispersion and is extremely stiff to reduce vibration being passed to the tweeter, ensuring sweet, clear and natural highs.

The 125mm mid/bass drivers include new oversized 35mm voice coils for low thermal compression and very high motor force factor to provide a highly dynamic yet controlled bass response. The woofer has an optimised motor and suspension system for maximum linearity and lowest distortion ensuring mid-range definition, whilst the lightweight nature of the carbon fibre cone material increases transient speed and clarity.

The AE509 is a Mid Tweeter Mid/bass (MTM) driver layout with a 2.5way crossover using high voltage polypropylene film wound capacitors and air core inductors at critical locations for optimum dispersion through a smaller acoustic source size within the crossover region.

These unique drivers are housed in our new Resonance Suppression Composite (RSC) cabinets evolved from the prestigious Reference Series and featuring the same constrained layer composite to greatly reduce cabinet acoustic radiation, which would otherwise colour the sound. The cabinets are finished in high gloss Piano Black, Piano White or American Walnut wood veneer finishes. Aluminium bars/feet are supplied with the AE509s to ensure rigid floor-coupling and maximum stability whilst the stiffness of the metal structure reduces the room to speaker interaction.

Offering unparalleled levels of performance, quality and value the result is a loudspeaker range with clean, uncluttered lines delivering a thrilling and powerful presentation discerning Acoustic Energy owners have come to expect for over 30 years.

Tweeter:

Our 500 Series tweeter features a brand new 25mm carbon fibre dome. Carbon fibre is much lighter and better damped than other typical hard dome materials and provides a lightning fast, natural sound which will surprise the listener with its neutrality. The new cast aluminium WDT waveguide on the high frequency driver is positioned close to the mid/bass driver for optimum dispersion and is extremely stiff to reduce vibration being passed to the tweeter, ensuring sweet, clear and natural highs.

Drivers:

The 125mm mid/bass driver includes a new oversized 35mm voice coils for low thermal compression and very high motor force factor, to provide a highly dynamic yet controlled bass response. The woofer has an optimised motor and suspension system for maximum linearity and lowest distortion ensuring mid-range definition, whilst the lightweight nature of the carbon fibre cone material increases transient speed and clarity.

Crossover:

The crossovers use high voltage polypropylene film wound capacitors and air core inductors at critical locations for optimum dispersion through a smaller acoustic source size within the crossover region. The AE509 is a Mid Tweeter Mid/Bass (MTM) driver layout and both models use a 2 way crossover.

Cabinet:

These unique drivers are housed in our new 18mm Resonance Suppression Composite (RSC) cabinets, evolved from the prestigious Reference Series and featuring the same constrained layer composite to greatly reduce cabinet acoustic radiation, which would otherwise colour the sound.
