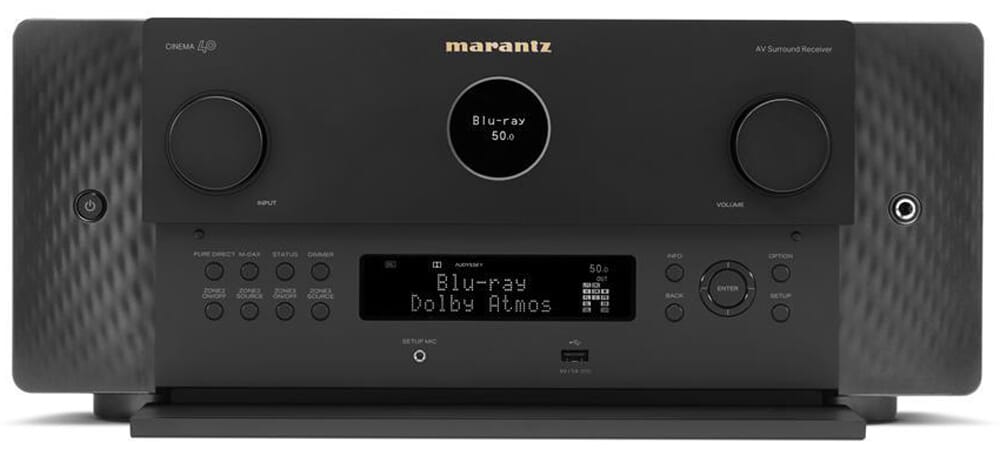

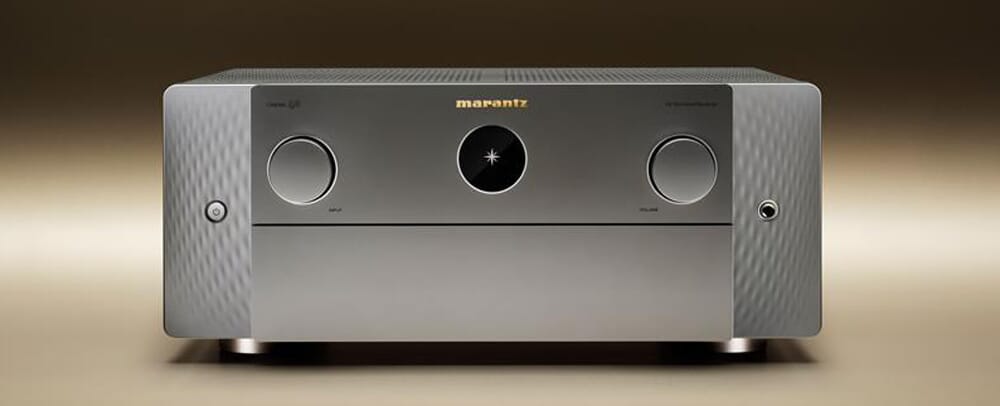

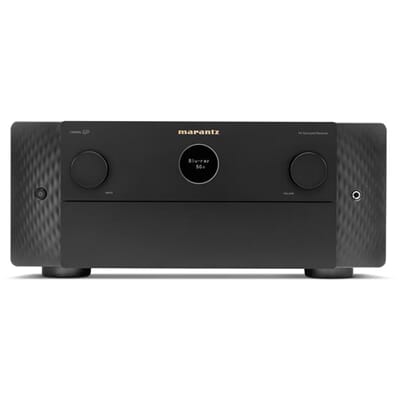

Marantz Cinema 40 er flaggskipet i Marantz sin nye hjemmekinoreceiverserie. Dette er en 9.4 kanals receiver med hele 125 watt per kanal med full støtte for Dolby Atmos, DTS:X, Auro 3D, 8K ultra HD og innebygget HEOS strømmetjeneste. En av referansene blant hjemmekinoreceivere!
Med den nye CINEMA-serien løfter Marantz sine hjemmekinoreceivere til ett nytt nivå. Serien består av fire modeller, CINEMA 70s, CINEMA 60, CINEMA 50 og CINEMA 40 hvor CINEMA 40 er selve flaggskipet!
Marantz CINEMA 40 er en hjemmekinoreceiver i toppklasse med alt du trenger av funksjonalitet til selvt store hjemmekinoløsninger. Receiveren har 9 innebygde klasse A/B forsterkere som gir deg 9 surround-kanaler. I tillegg kan du utvide til 11 kanaler ved å koble til en ekstra forsterker på pre-out. Du kan også koble til hele 4 subwoofere og disse kan styres separat fra receiveren.
CINEMA 40 er godt bestykket med alt du skulle trenge av inn- og utganger.
Spesifikasjoner
POWER AMPLIFIER
| Number of Powered Channels |
9 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) |
|
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) |
125 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) |
165 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) |
235 W |
| 70% Guarantee |
Yes |
| Discrete Power Amplifier |
Yes |
| Amplifier Topology |
Class A/B |
| Current Feedback Topology |
Yes |
| Bi-Amp Drive |
assignable |
MULTICHANNEL SURROUND TECHNOLOGIES
| DTS |
DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X |
| Dolby |
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
| Other |
IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Audyssey DSX, Multichannel Stereo2 |
| Max Number of Processing (Preamp) Channels |
11.4 |

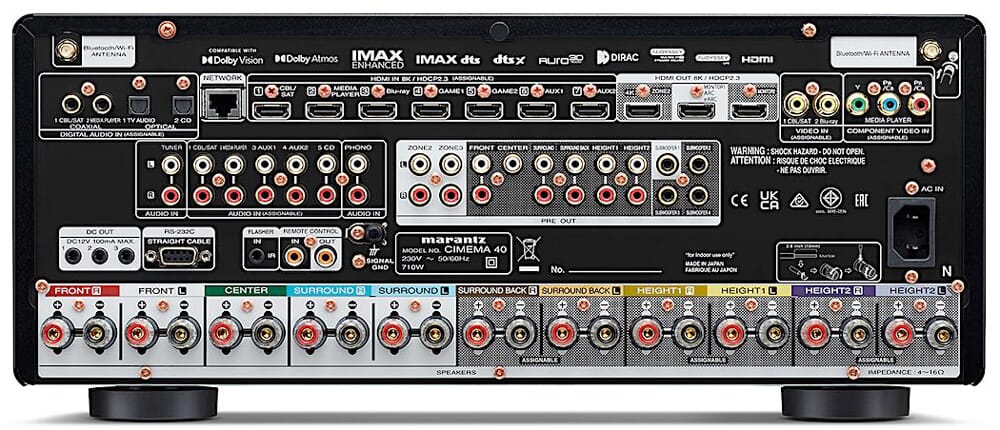

Inputs/Outputs
| Composite In / Out |
2 / 0 |
| Component In / Out |
1 / 0 |
| HDMI In / Out |
7 / 3 |
| Multi-Room Video Out via HDMI |
Yes |
| Analog In / Fixed Level Out |
6 in / 0 out |
| Phono (MM) In |
Yes |
| Digital In: Optical / Coaxial |
2 / 2 |
| Multi-Room Out: analog / digital |
2 / 0 |
| Multichannel Preamp Out |
11.4 |
| Subwoofer Out |
4 (independent) |
| 7.1 multichannel input |
Yes |
| Number of Speaker Terminals |
11 |
| Speaker A / B |
assignable |
| Multi-Room Speaker Terminal |
assignable |
| Front Inputs |
USB-A |
| USB Audio |
Yes |
| FM Tuner with RDS |
No |
| DAB+ Tuner |
No |
HDMI
| Total HDMI Inputs / No. Support 8K |
7 / 7 |
| HDCP2.3 support |
Yes |
| HDMI Outputs: Main / Zone |
2 / 1 |
| Analog to HDMI Video Conversion |
Yes |
| HDMI Upscaling |
1080P/4K to 8K |
| Max resolution @ framerate |
8K @ 60Hz, 4K @ 120Hz |
| Audio Return Channel |
eARC |
| Video Dynamic Range |
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR |
| ALLM (Auto Low Latency Mode) Pass-through for gaming |
Yes |
| Variable Refresh Rate / Quick Frame Transport |
Yes / Yes |
| HDMI Pass-Through in Standby Mode |
Yes |
| CEC |
Yes |
| DSD Audio over HDMI |
Yes |
| Auto LipSync |
Yes |
PERFORMANCE TECHNOLOGIES
| Copper Plated Chassis |
No |
| Toroidal Power Supply Transformer |
No |
| Hyper Dynamic Amplifier Modules (HDAM) (List version) |
Yes |
| Pure Direct Mode |
Yes |
| Gold Plated RCA Terminals |
Yes |
| Clock Jitter Reducer |
Yes |
Acoustic / Room Correction
| Audyssey |
MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume |
Yes / Yes |
| Audyssey LFC |
Yes / Yes |
| Dirac Live Support |
Yes |
| Variable Cross Over |
Yes |
| Optimized Bass Redirection |
Yes |
| Bass Sync |
Yes |
MUSIC FILE SUPPORT
| Lossy Formats |
MP3 / WMA / AAC |
| Lossless formats |
FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 |
| DSD Audio |
2.8MHz / 5.6MHz |
| Gapless Playback |
FLAC, WAV ,ALAC ,DSD |
| Compressed Audio Enhancer: MDAX2 |
Yes |
| Network Audio Sharing |
Yes |
STREAMING SERVICES
| HEOS Multi-room and Streaming |
Yes |
| AirPlay Audio Streaming |
Airplay 2 |
| Internet Radio |
TuneIn |
| Spotify* |
Spotify Connect |
| Pandora |
Yes |
| SiriusXM |
Yes |
| Other Streaming Services * |
Amazon Music HD/ Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix |
| Roon tested |
Yes |
NETWORK CONNECTIVITY
| Ethernet Ports |
Yes |
| Wi-Fi (include version / band) |
Yes |
| Bluetooth (Include version) |
Yes |
| Bluetooth Re-transmit for Bluetooth headphones |
Yes |
SMART HOME INTEGRATION AND CONTROL
| Voice Assistant Compatibility |
Alexa / Google Voice Assistant / Apple HomePod |
| App for Smart Phones & Tablets (iOS & Android) |
Marantz AVR App, HEOS |
| HEOS Multi-Room Integrated |
Yes |
| HEOS Link Compatibility: IR/ IP |
Yes / Yes |
| Multi-Room zones |
3 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog |
2 Ch / 2 Ch / Yes / Yes |
| Zone Audio Output: Speaker / Preout |
Yes / Yes |
| Zone HDMI Output from HDMI Source |
Yes |
| Control Connectivity |
IP Control / RS232 Control / Web Control / App Control |
| IR Flasher In |
Yes |
| Marantz Remote Bus |
Yes |
| DC Trigger Output |
3 |
| HDMI Diagnostics |
Yes |
Others
| Front Display |
2 line FLD + port hole OLED |
| Primary Display Size (diagonal in/mm) |
|
| Secondary Display Size (diagonal in/mm) |
|
| GUI Languages |
9 |
| Setup Assistant |
Yes |
| Smart Select on Remote |
Yes |
| Firmware Update by Network / USB |
Yes / Yes |
| ECO Mode |
Yes |
| Auto Power off |
Yes |
| Sleep Timer |
Yes |
General
| Available Colors |
Black/Silver-Gold |
| Metal Front Panel |
Yes |
| System Remote Control |
RC-048SR |
| Power Consumption in W |
710 |
| Power Consumption No-Sound (ECO on/off) in W |
65 W / 110 W |
| Standby Consumption in W |
0.2 |
| CEC Standby Consumption in W |
0.5 |
| Network Standby Consumption in W |
Less than 2.0 |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) in mm Antenna:Vertical :(W x D x H) in mm W/o Antenna:(W x D x H) in mm |
440x414x185 (440x414x254) ?440x401x185? |
| Weight in kg |
15.1 |
| What's in the box |
Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord |
